STEDI Single 1x Light 7 Inch Type-X Sport SNGL-X1-SPORT-7INCH

SKU:SNGL-X1-SPORT-7INCH

$229.00


Calculate Shipping

STEDI DESIGN LANGUAGE

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 stainless steel bracket features Stedi's signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

LEGENDARY TYPE-X DNA

It's been a few years since the inception of the original Type-X. We've taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

HIGH PERFORMANCE - ACCESSIBLE PRICE

The 7" Type-X Sport is Stedi's most affordable driving light yet, with the inherented STEDI ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X Sport remains untouched.

The nitty gritty.

THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes a rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion-resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 metres
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each 7" TYPE-X Sport comprises 32 of OSRAM’s finest OSLON LED, selected for its high luminous flux and perfectly matches optical properties.
  • 4 wide-beam reflectors built-in, which form a lateral-shaped flood pattern designed to minimise valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI)

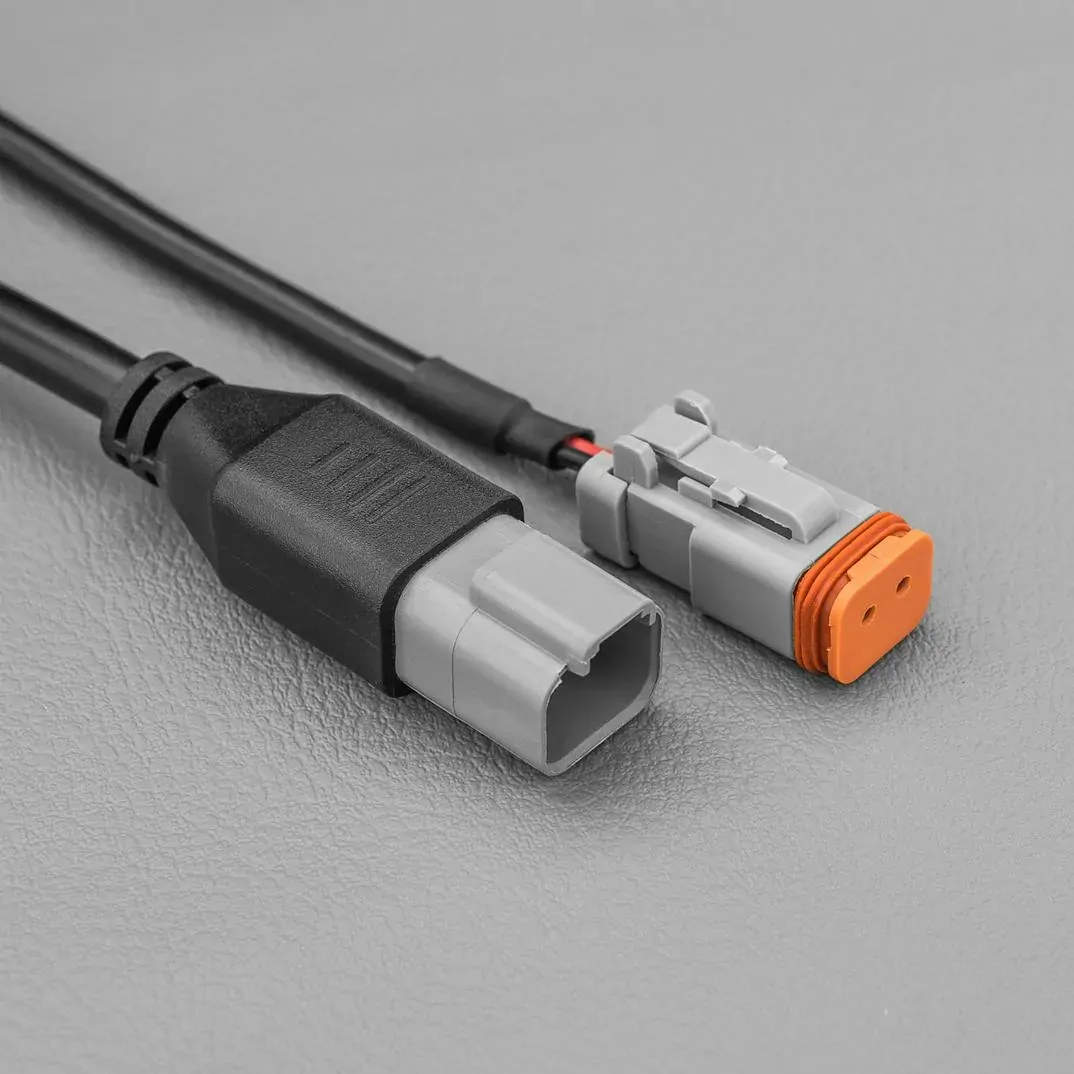

DOES NOT INCLUDE A WIRING HARNESS. Rrecommend Single Connector Plug & Play High Beam Driving Light Wiring

Features

  • LED: 32 x Osram Oslon SSL
  • Lumens (Raw): (Pair)
  • Lumens: (Pair)
  • Current Draw: 6.4A @ 13.2V each
  • Power Draw: 85W each
  • Beam Type: 4 x Spread 28 x Spot Beam
  • Ingress Protection: IP68/Submersible up to 3m
  • Colour Temperature: 5700K
  • Voltage: 12/24V
  • Life Span: 50,000 Hours
  • Weight: kg each
SKU SNGL-X1-SPORT-7INCH
Brand STEDI
