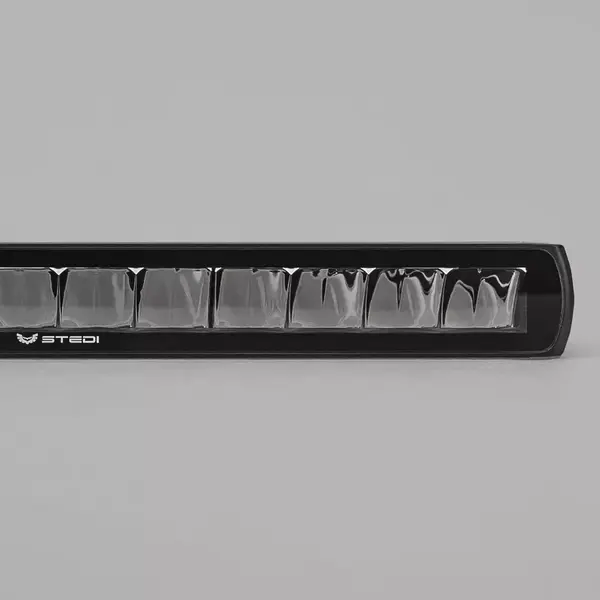

STEDI ST1K 13.5 Inch E-Mark LED Light Bar LEDST1K-13-12L

SKU:LEDST1K-13-12L

$145.00


Calculate Shipping

CERTIFIED E-MARK COMPLIANT.

Stedi's new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring Stedi's innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 12 LED is ideal for stealth installations - think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

HIGH-END DESIGN MEETS HIGH PERFORMANCE

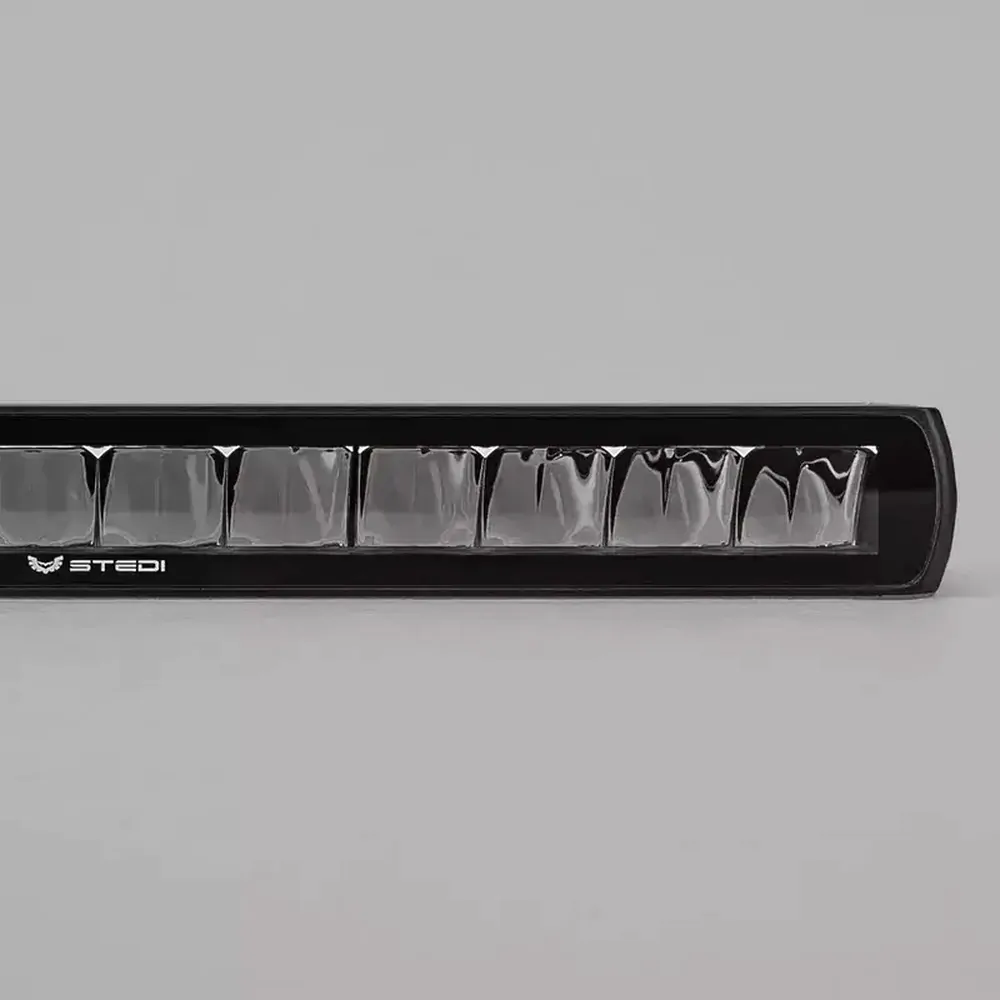

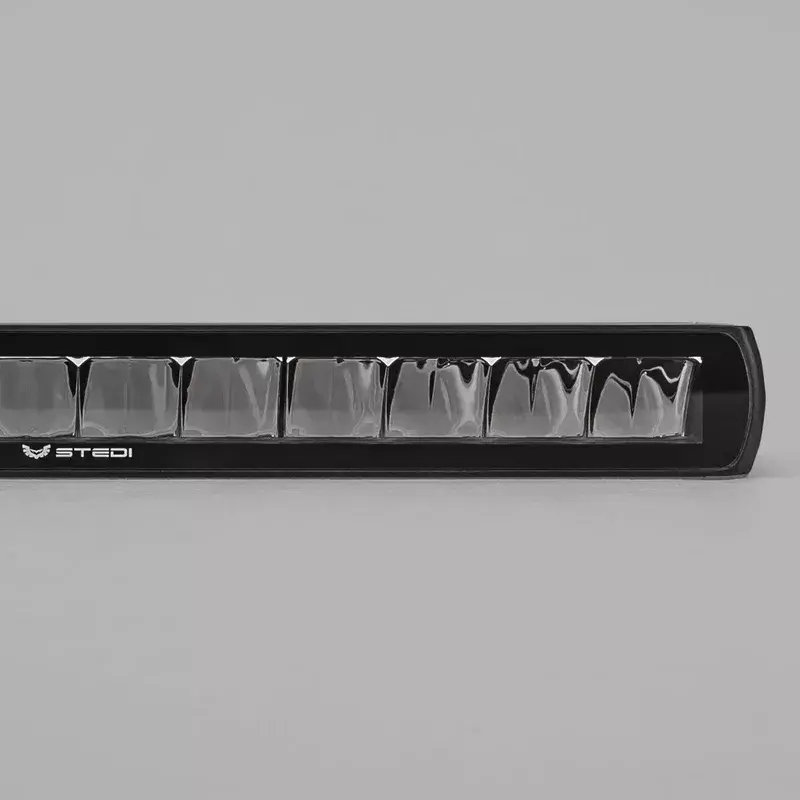

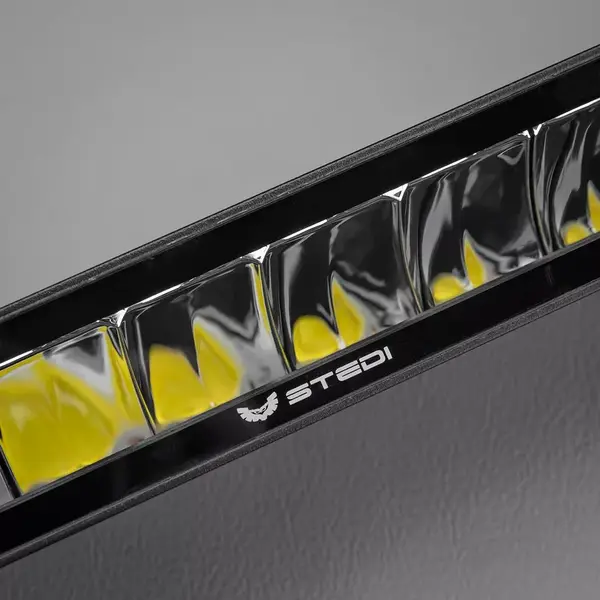

The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs.  The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main-beam, ensuring you arrive at your destination in total comfort.

HIGH-END DESIGN MEETS HIGH PERFORMANCE

The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs.  The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main-beam, ensuring you arrive at your destination in total comfort.

The nitty gritty.

THE NERDY STUFF

  • 12 x 5W OSRAM LEDs
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m

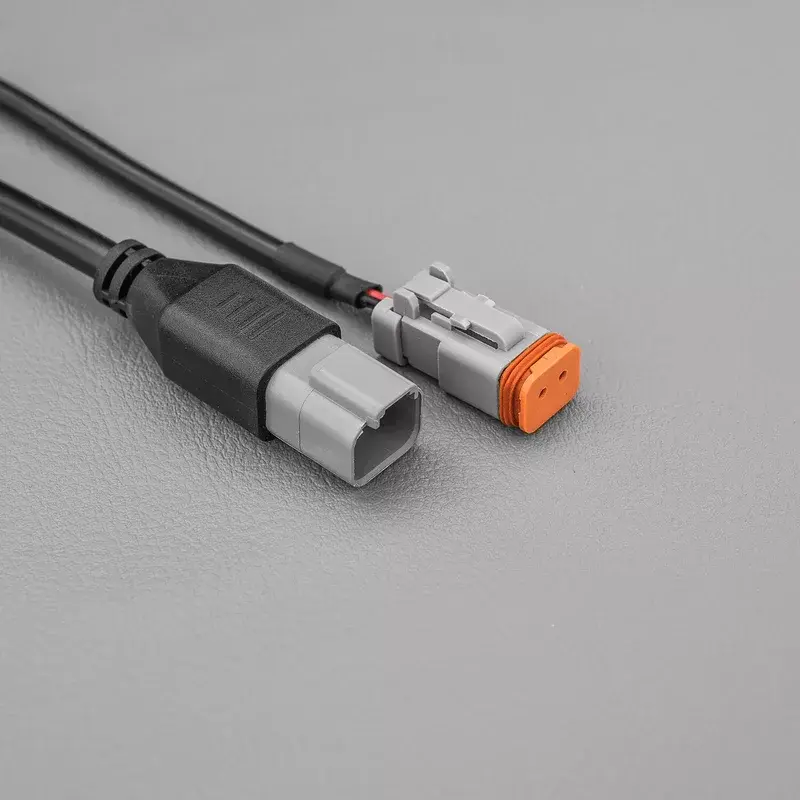

  • Environmentally sealed Deutsch DT-2 connectors

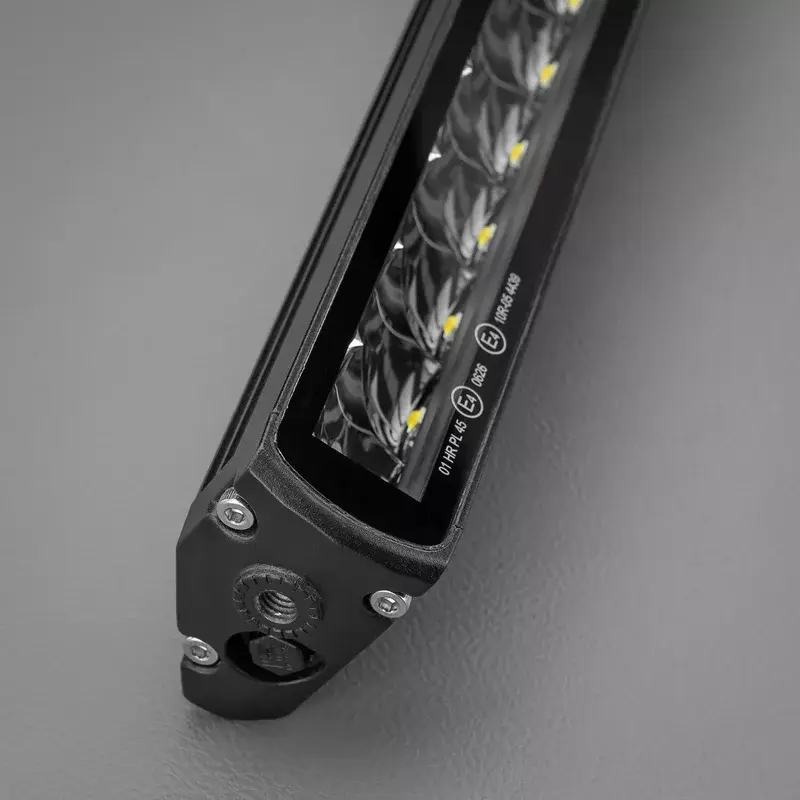

  • Innovative hooded optics
  • Driving Beam E mark compliant beam.

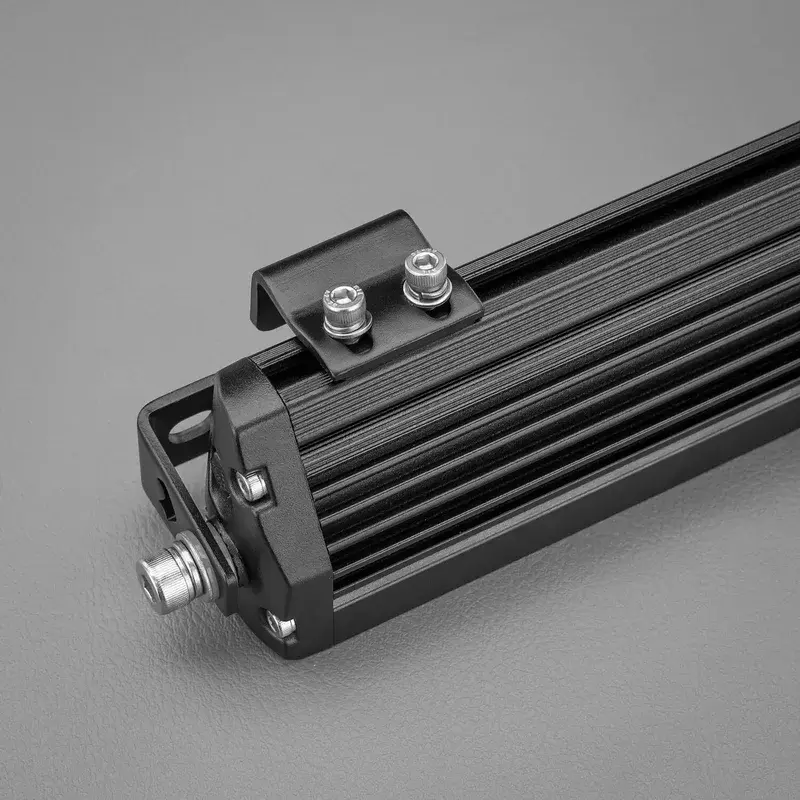

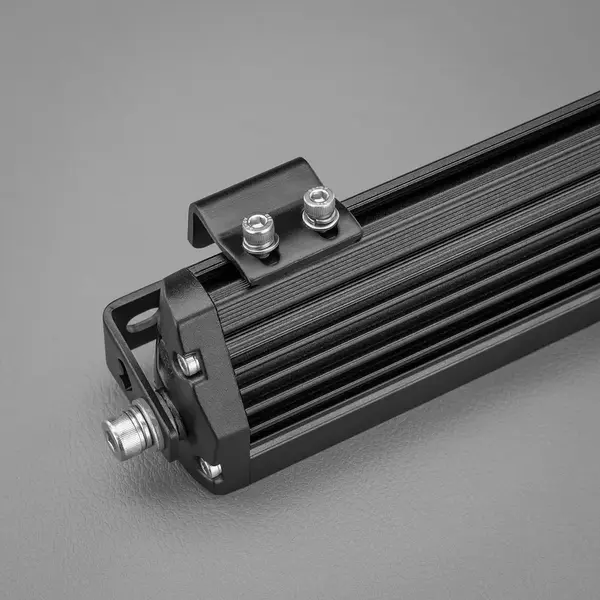

  • Heavy Duty Adjustable Bottom Mounts & Side bracket included.
  • Reverse Polarity Protected Circuit (RPPC)
  • Electronic Thermal Management
  • Built-in Voltage Surge Protection

Features

  • LED MANUFACTURER: OSRAM
  • LED Count: 12
  • Voltage: 9-36V
  • Current Draw: 4.0A @13.6V
  • Lens Type: Optical Grade, Hard Coated Lexan
  • Lumens (Raw): 3,552lm
  • PEAK INTENSITY (CANDELA): 134,435cd

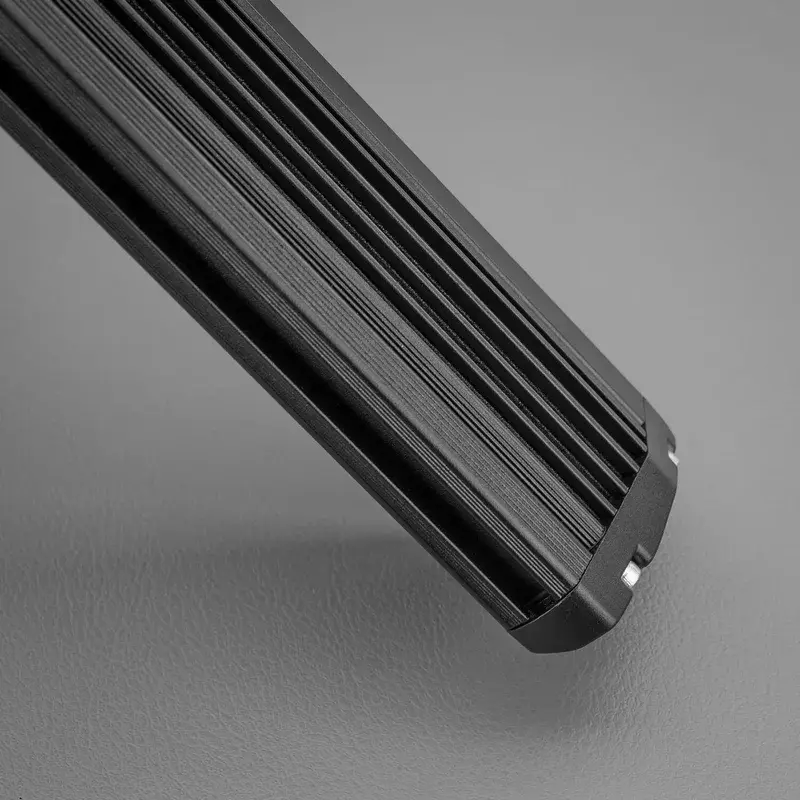

  • Housing: A360.0 Cast face plate, extruded Aluminum heat sink
  • Life Span: 50,000 Hours
  • Flood Beam Angle: 50°
  • Spot Beam Angle: 9°
  • Ingress Protection: IP68
  • Operating Temperature Range: -40 to +150°C
  • Weight: 0.845kg
SKU LEDST1K-13-12L
Brand STEDI
