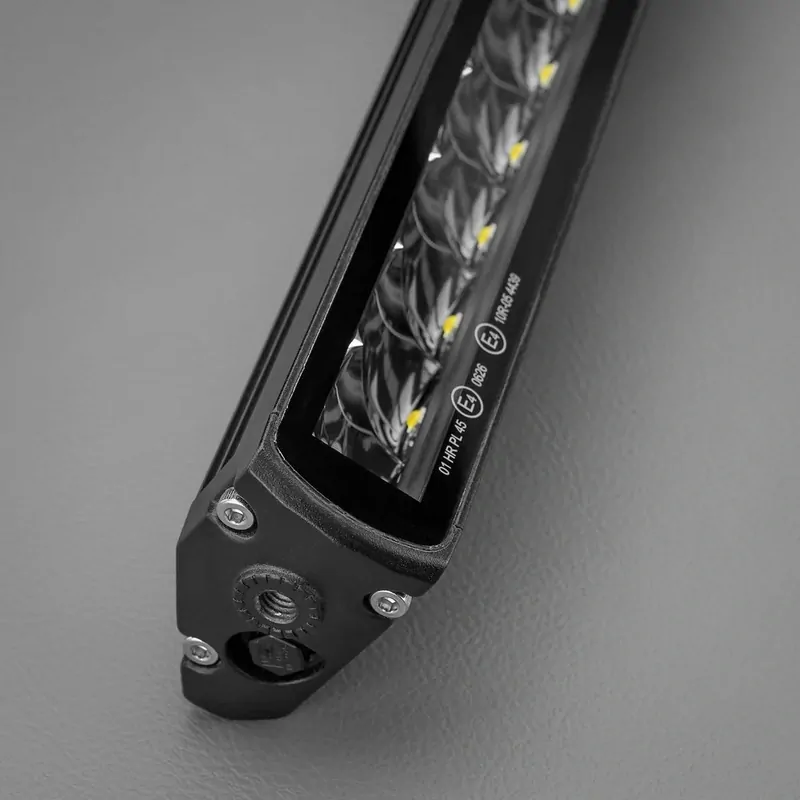

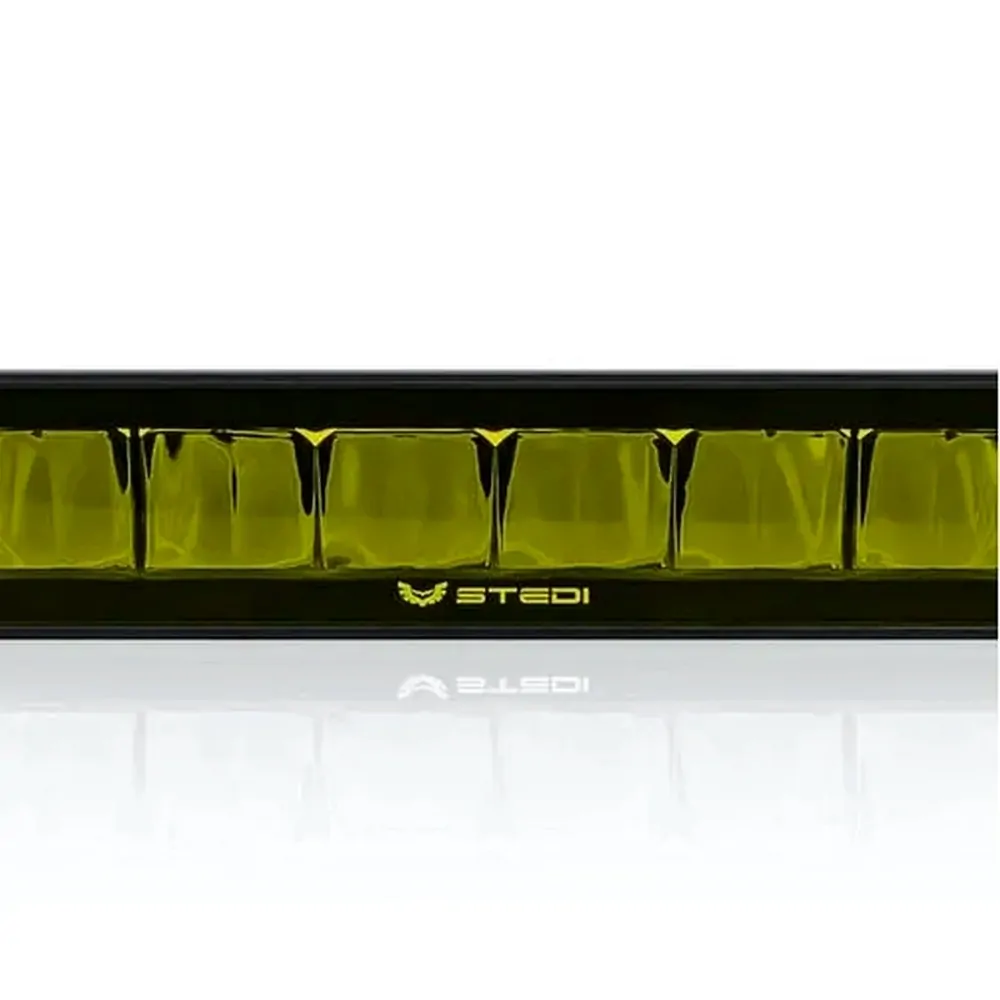

STEDI ST1K 21.5 Inch E-Mark LED Light Bar Yellow LEDST1K-20-20L-YEL

SKU:LEDST1K-20-20L-YEL

$219.00


Calculate Shipping

CERTIFIED E-MARK COMPLIANT.

Stedi's new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring Stedi's innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations - think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

BITE THE DUST

Wide-horizontal beam patterns, coupled with Stedi's edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

BITE THE DUST

Wide-horizontal beam patterns, coupled with Stedi's edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

The nitty gritty.

THE NERDY STUFF

  • 20 x 5W OSRAM LEDs
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • Environmentally sealed Deutsch DT-2 connectors
  • Innovative hooded optics
  • Driving Beam E mark compliant beam.

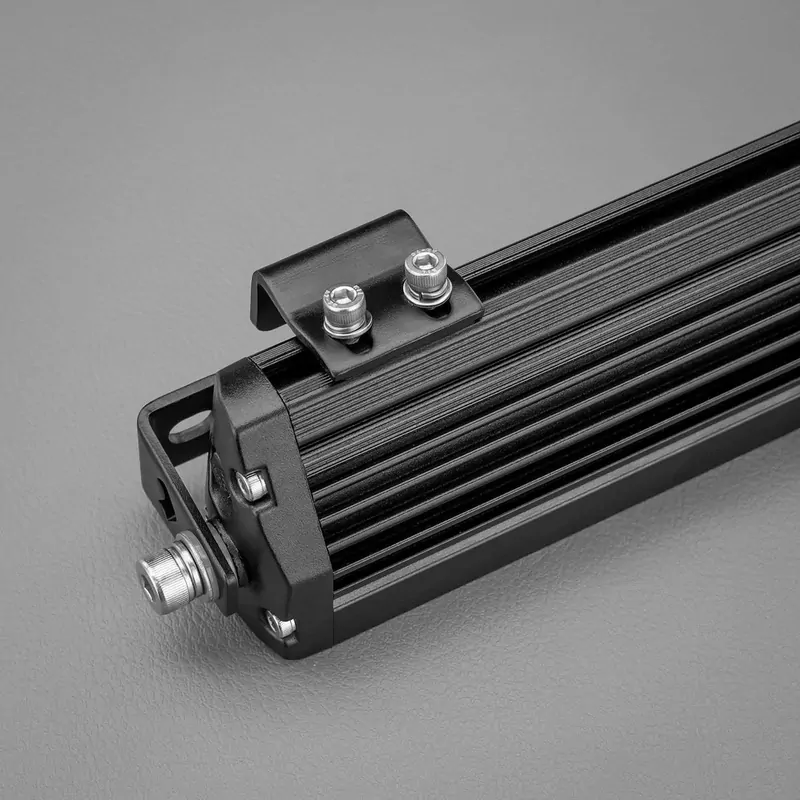

  • Heavy Duty Adjustable Bottom Mounts & Side bracket included.
  • Reverse Polarity Protected Circuit (RPPC)
  • Electronic Thermal Management
  • Built-in Voltage Surge Protection

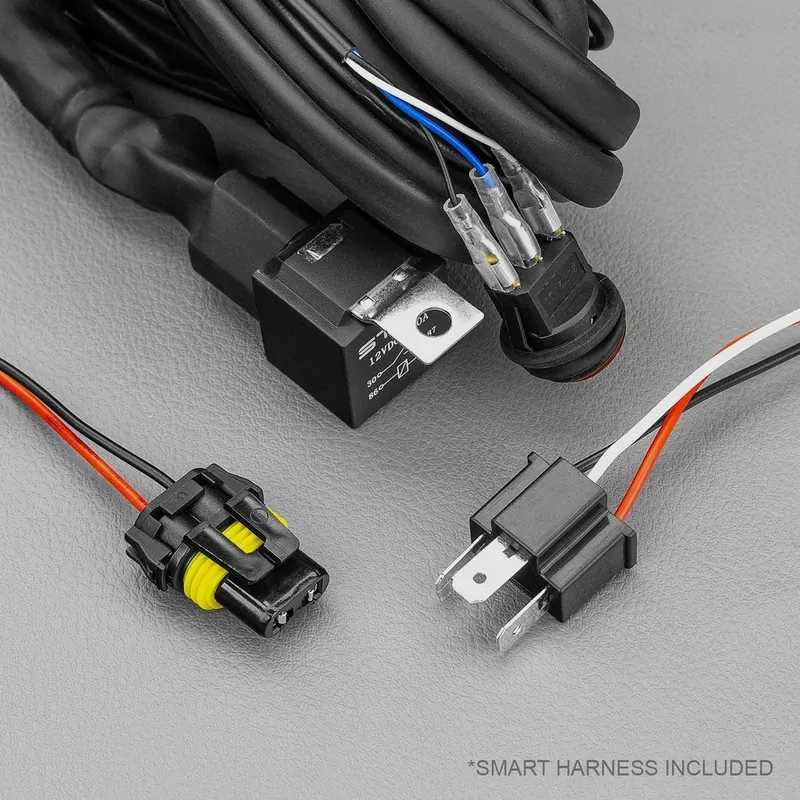

INCLUDES: Stedi's high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)

Features

  • LED MANUFACTURER: OSRAM
  • LED Count: 20
  • Voltage: 9-36V
  • Current Draw: 8.0A @13.6V
  • Lens Type: Optical Grade, Makrolon
  • Lumens (Raw): 5,920lm
  • PEAK INTENSITY (CANDELA): 219,792cd

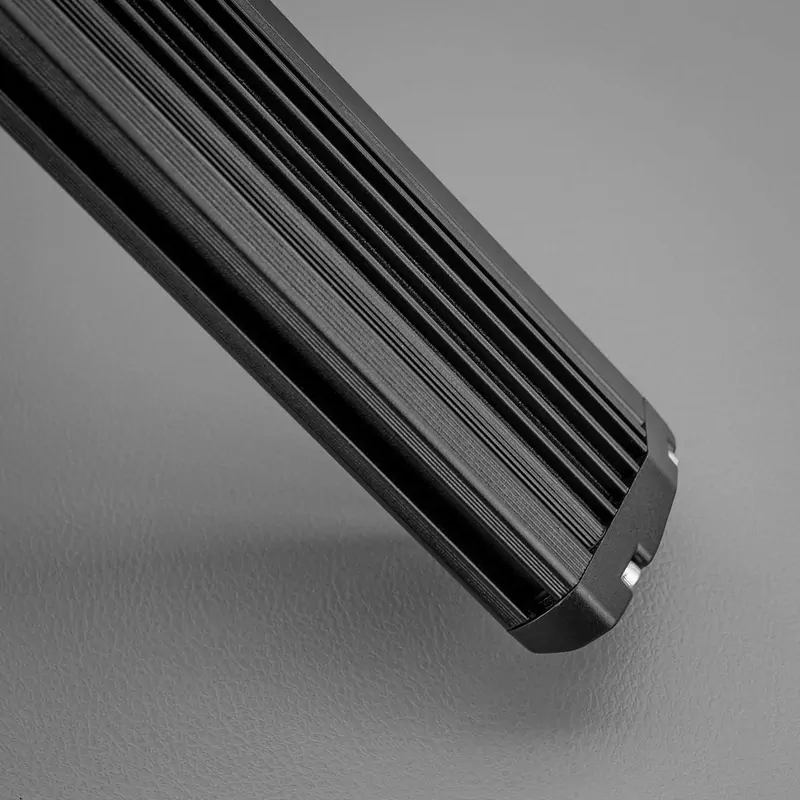

  • Housing: A360.0 Cast face plate, extruded Aluminum heat sink
  • Life Span: 50,000 Hours
  • Ingress Protection: IP68
  • Operating Temperature Range: -40 to +150°C
  • Weight: 1.290kg
SKU LEDST1K-20-20L-YEL
Brand STEDI
