STEDI Universal Type C LED Fog Light Conversion Kit LEDFOG-ST6057

SKU:LEDFOG-ST6057

$160.00


Calculate Shipping

UNIVERSAL HOUSING SOLUTION.

If you're looking for an OEM-like LED upgrade, look no further down Stedi's Type C fog light which has mounting brackets to suit a wide range of factory fog lamp housing.

UTMOST COMPLIANCE.

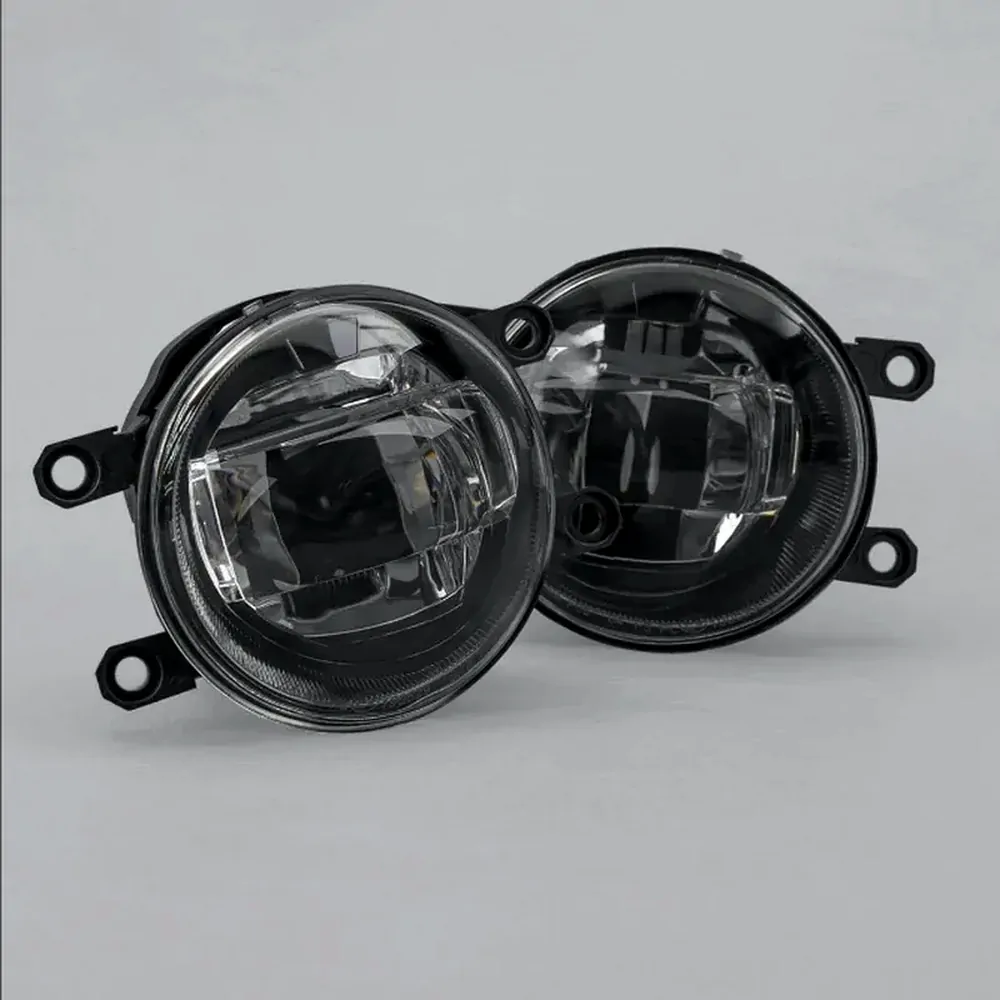

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

BULL BAR FRIENDLY.

These LED fog lights are a direct fit, using your factory mounting points in behind the standard front bumper, and some aftermarket bull bars which you can view here.

The nitty gritty.

KEY TECHNICAL DETAILS

These LED fog lights are a direct fit which uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

 Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

Please check below for a full list of compatible vehicles.

BULL BARS

  • TJM: T13 Bull Bars with halogen fog lights T13
  • Rhino 4x4: Bull Bars

Features

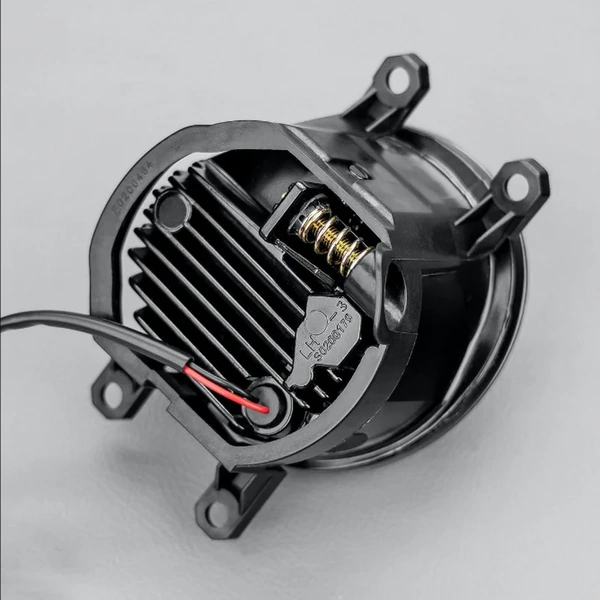

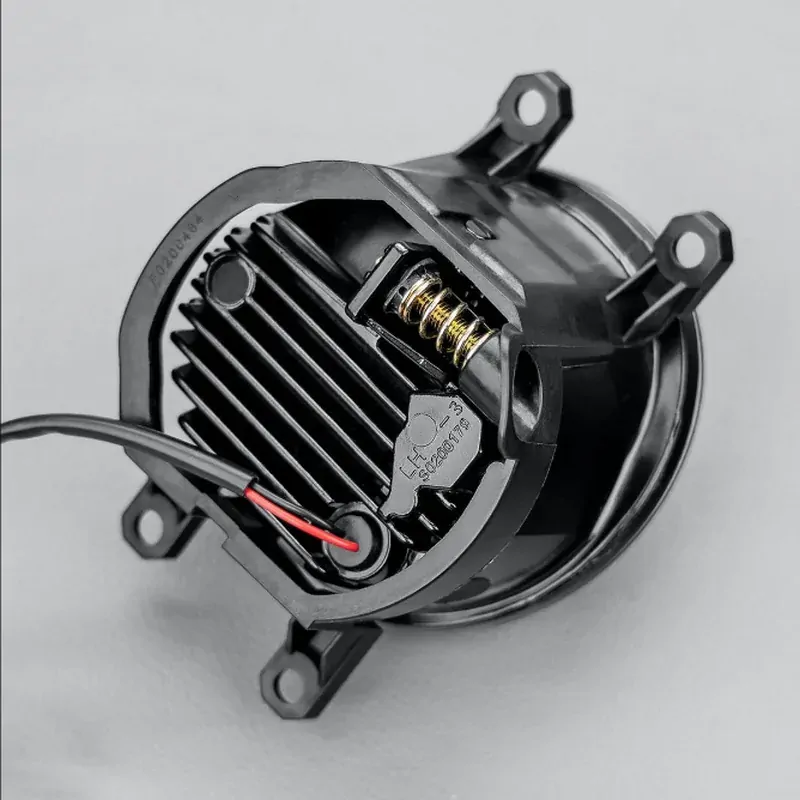

  • Housing: Alloy Heat Sink
  • LED: High Performance Luxeon T LED
  • Lumens: 960lm (per light)
  • Voltage: 12/24V
  • Life Span: 50,000 Hours

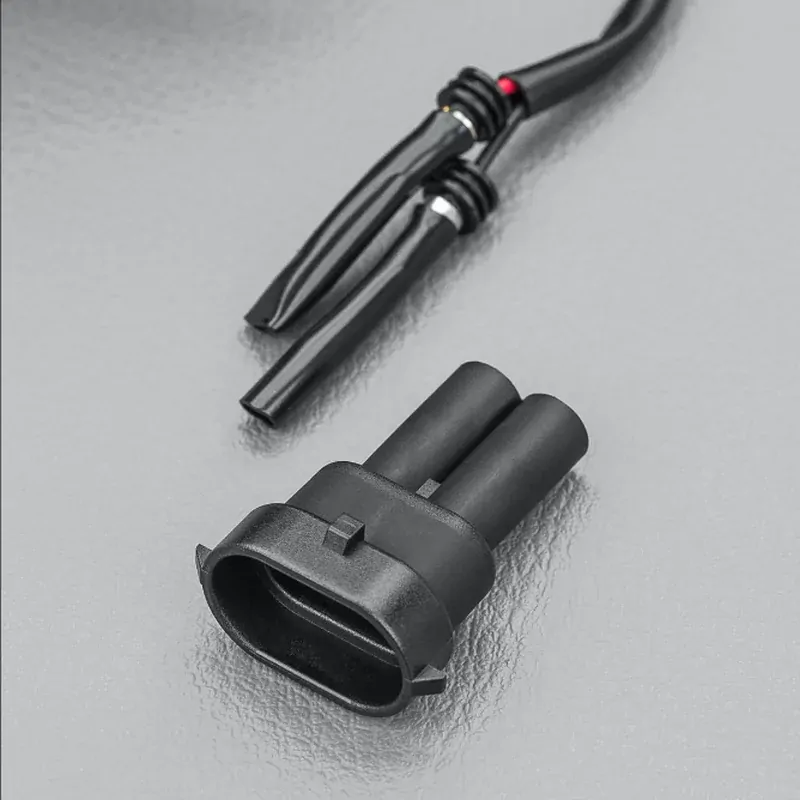

  • Connector: Sealed
  • Approvals: CE, E4, RoHs, R87, IP67
  • Current Draw (Foglight): 0.5A @ 13.6V
  • Diameter: 90mm
    OEM PART NO#: OE No.: 81210-0W050, 81220-0W040/OE No.: 81210-0W070, 81220-0W070
SKU LEDFOG-ST6057
Brand STEDI
