Stinger AXHN-2 Axxess Lane Watch Camera Interface fits Honda
SKU:AXHN-2
Retain your Honda vehicles reverse and LaneWatch camera when installing an aftermarket infotainment system with ease.
Keep That Functionality
Designed to be used with Honda vehicles featuring the LaneWatch Camera system, OEM Reverse camera and have the stalk camera control.
This kit allows retention of the side and rear camera when installing your aftermarket infotainment system while offering a vehicle specific plug in harness to allow installation for the infotainment system itself.
Vehicles fitted with OEM AUX sockets can even be retained for use with aftermarket infotainment systems featuring rear 2CH RCA audio input.
Pre-Wired For Ease
Included with the Axxess AXHN-2 is pre-wired and loomed vehicle specific harness. This harness allows easy installation of the Axxess AXSWC steering interface for retention of vehicle steering wheel mounted audio control buttons for your aftermarket infotainment system.
Plug & Play SWC Compatibility:
HONDA CRV 2012 " 2016 (RM)
HONDA CIVIC 2012 " 2015 (9TH GEN)
Compatible with major branded radios only (see AXSWC instruction manual for applications)
Features? We Got 'em
- Provides accessory power (10-amp)
- Provides NAV outputs (parking brake, reverse, speed sense)
- Pre-wired AXSWC harness (AXSWC sold separately)
- Retains the factory backup camera
- Retains the LaneWatch camera
- Retains ability to change factory clock and date*
- Retains the factory AUX-IN jack
- Can be used in non-amplified, or amplified models
- Retains balance and fade
- Micro-B USB updatable
* Excluding LX and NAV models

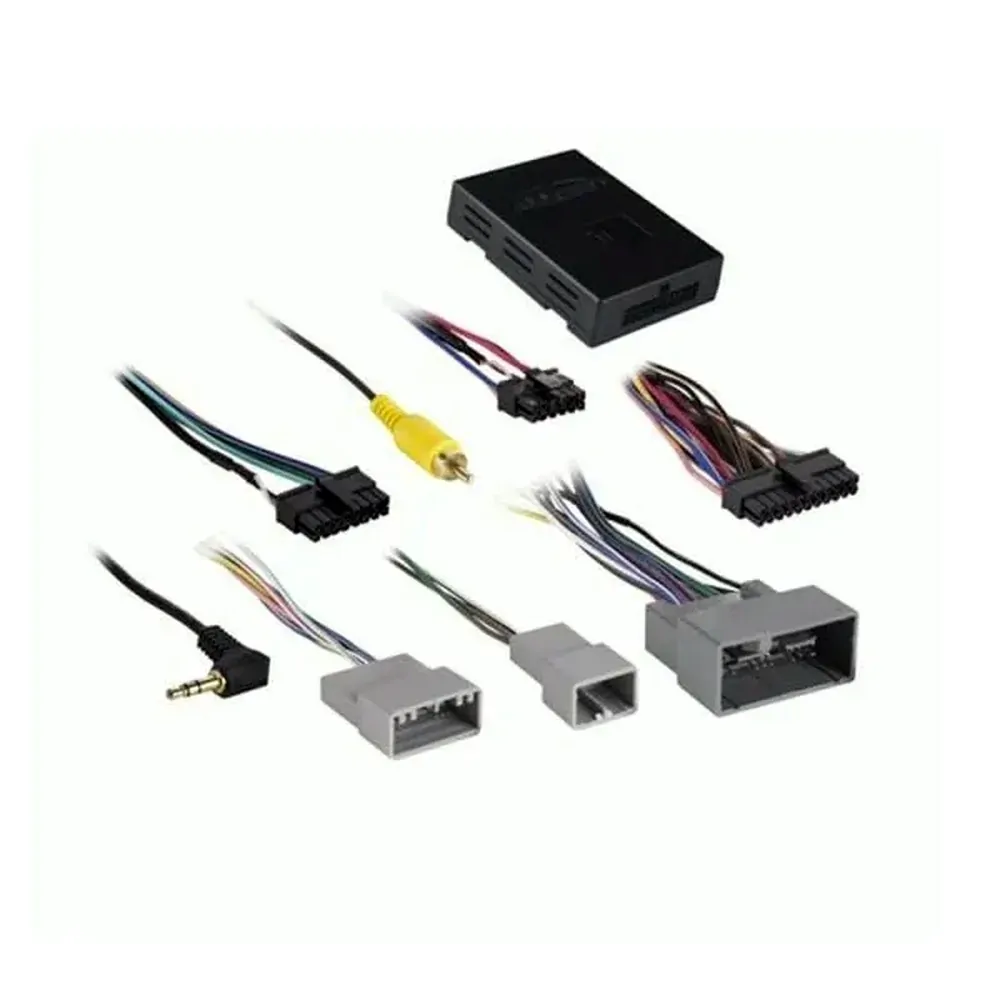

What Do You Get?
- The Axxess AXHN-2 kit includes
- Vehicle Specific Interface
- Vehicle Specific Harness
- Installation Manual
Compatibility Notes
HONDA, CRV, 2015 " 2016 (RM)
- Vehicle MUST HAVE CD mechanism from factory to retain lane watch camera.
HONDA, HRV, 2015 " 2017 (2ND GEN)
- Vehicle MUST HAVE CD mechanism from factory to retain lane watch camera.
- Vehicle must have stalk control for lane watch camera
HONDA, JAZZ, 2014 " 2016 (GF)
- Vehicle MUST HAVE CD mechanism from factory to retain lane watch camera.
Specifications:
| Retain Factory Reverse Camera? | YES - Included With Interface |
|---|---|
| Plug & Play | YES - FACTORY CONNECTOR TO BARE WIRES |
| Retain Factory Steering Wheel Audio Controls? | YES - If used with Axxess AXSWC or Autoleads CP2-UNI or PAC SWI-CP5 Interfaces ONLY |
| Vehicle Specific Notes: | Due to a limitation of the factory camera. when the factory radio is removed the fish eye lens is the remaining default view. |
Vehicle Fitment
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| Honda | Crv | 2015 - 2016 (Rm) |
| Honda | Hrv | 2015 - 2017 (2Nd Gen) |
| Honda | Jazz | 2014 - 2016 (Gf) |
| SKU | AXHN-2 |
| Barcode # | 86429385102 |
| Brand | AUSTRALIAN CAR AUDIO |
