Stinger C8NECTAV3 CAN - Ign Rev Park Outputs

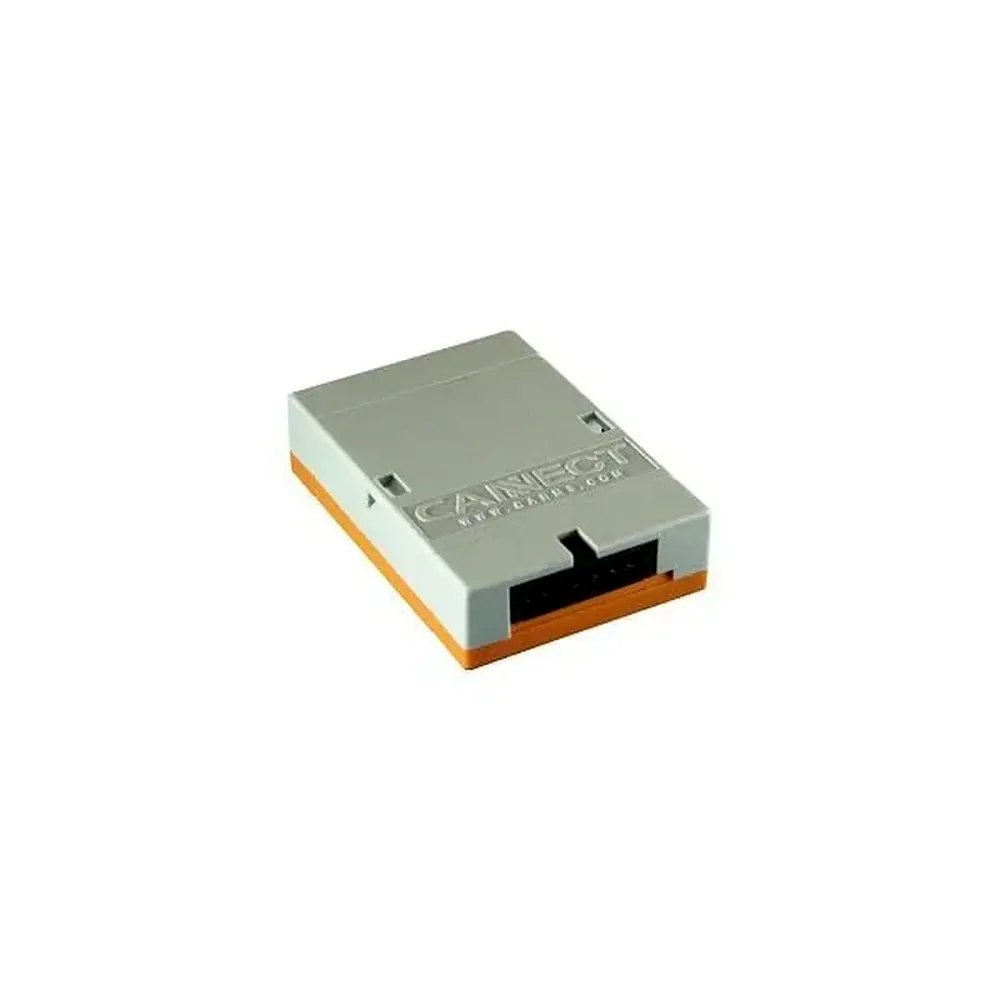

The CANM8 CANNECT AV3 interface is designed to provide a universal solution for installing after-market electronic products to vehicles which feature CAN Bus wiring.

Outputs

• Ignition On: 12v (1A max) when the ignition is switched on.
• Reverse: 12v (1A max) when reverse gear is selected.
• Park Brake: 0v (1A max) when the park brake is engaged.

Installation Details

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status Details

• Flashing Red: Searching for CAN information.
• Solid Red: CAN Data received but vehicle not yet identified.
• Solid Green: CAN Data received and vehicle type recognised.
• Flashing Green: Vehicle speed detected.

Wiring Harness Details

• RED: onnect via a 5A fuse to a PERMANENT 12v supply.
• BLACK: onnect to a good chassis GROUND point.
• WHITE: AN HI Connection : Vehicle CAN HI wire.
• BLUE: AN LO Connection : Vehicle CAN LO wire.
• PURPLE: Ignition On Output : 12v (1A max) when the ignition is switched on.
• BROWN: Reverse Output : 12v (1A max) when reverse gear is selected.
• PINK: Park Brake Output : 0v (1A max) when the park brake is engaged.
