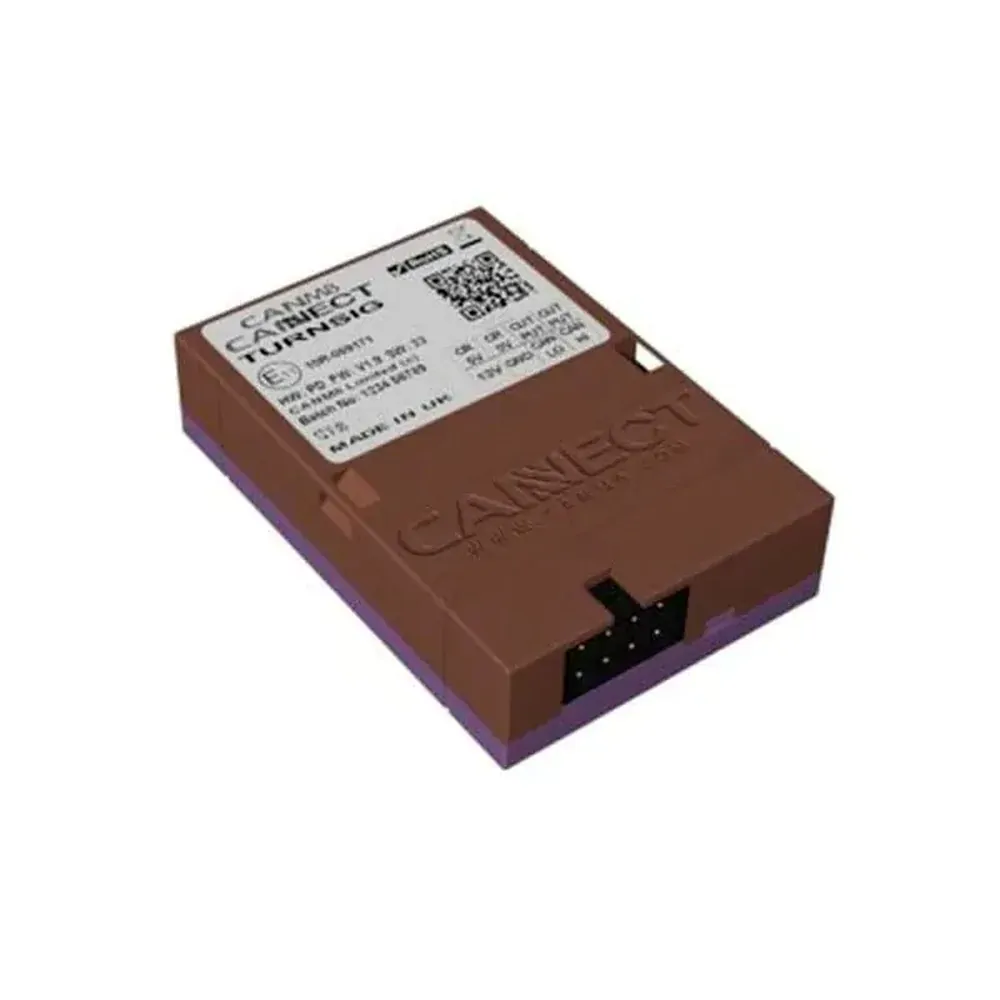

Stinger C8NECTTURNSIG CANM8 CANNECT Indicator Trigger Output Interface
SKU:C8NECTTURNSIG
$269.00
The CANM8 CANNECT TURNSIG is a CAN Bus interface that provides a smooth 12v output from both left and right indicators on vehicles which feature CAN Bus wiring.
Outputs
| Left Indicator | > | 12v (1A max) when the left indicator is active. |
| Right Indicator | > | 12v (1A max) when the right indicator is active. |
Applications
The CANM8 CANNECT TURNSIG interface is ideal for connection with auxiliary equipment and telematics devices which require indicator activity information. Many telematics devices record a repeated "on/off" signal from the left and right indicators which can lead to large packets of unnecessary data being recorded. The CANM8 CANNECT TURNSIG interface will provide an output when the indicator is turned on and another when it is turned off, allowing for more concise data recording.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
| Flashing Red: Searching for CAN information. | |
| Solid Red: CAN Data received but vehicle not yet identified. | |
| Solid Green: CAN Data received and vehicle type recognised. | |
| Flashing Green: Vehicle speed detected. |
Wiring Harness Details
| Connect via a 5A fuse to a PERMANENT 12v supply. | ||
| Connect to a good chassis GROUND point. | ||
| CAN HI Connection : Vehicle CAN HI wire. | ||
| CAN LO Connection : Vehicle CAN LO wire. | ||
| Right Indicator Output : 12v (1A max) when the right indicator is active. | ||
| Left Indicator Output : 12v (1A max) when the left indicator is active. |
Specifications:
| Plug & Play | NO |
|---|---|
| How Much Material Do I Get? | Material? Well its made from many materials including plastic, copper and more! |
Vehicle Fitment
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| Audi | A3 (Incl S3) | 2004 - 2013 (8P) |
| Audi | A3 (Incl S3) | 2012 - 2019 (8V) |
| Audi | A4 (Incl S4) | 2009 - 2015 (B8) |
| Audi | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8Ta) |
| Audi | A5 (Incl S5) | 2016 - 2019 (F5) |
| Audi | A6 (Incl S6) | 2011 - 2019 (4G) |
| Audi | A8 (Incl S8) | 2011 - 2017 (4H) |
| Audi | Q5 | 2009 - 2016 (8R) |
| Audi | Q5 | 2017 - 2019 (Fy) |
| Audi | Q7 | 2006 - 2015 (4L) |
| Audi | Q7 | 2015 - 2019 (4M) |
| Audi | R8 | 2007 - 2015 (42) |
| Audi | Tt | 2006 - 2014 (8J) |
| Audi | Tt | 2014 - 2019 (Fv-8S) |
| BMW | 1 Series (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
| BMW | 2 Series | 2015 - 2019 (F25) |
| BMW | 3 Series (Incl M3) | 2005 - 2014 (E90) |
| BMW | 4 Series | 2013 - 2019 (F32-F33) |
| BMW | 5 Series (Incl M5) | 2004 - 2011 (E60) |
| BMW | 6 Series | 2004 - 2011 (E63) |
| BMW | 6 Series | 2011 - 2019 (F12-F13) |
| BMW | 7 Series | 2001 - 2008 (E65-E66-E67-E68) |
| BMW | 7 Series | 2008 - 2013 (F01-F02) |
| BMW | I3 | 2014 - 2019 (Io1) |
| BMW | X1 | 2009 - 2015 (E84) |
| BMW | X3 | 2011 - 2019 (F25) |
| BMW | X5 | 2013 - 2019 (F15) |
| BMW | X6 | 2008 - 2013 (E71) |
| BMW | Z4 | 2009 - 2016 (E89) |
| Citroen | Berlingo | 2008 - 2015 (Second Gen) |
| Citroen | C4 | 2004 - 2010 (First Gen) |
| Citroen | C5 | 2008 - 2013 (Rd-Td) |
| Citroen | Ds3 | 2009 - 2016 (First Gen) |
| Fiat | Ducato | 2006 - 2012 (Third Gen) |
| Fiat | Ducato | 2012 - 2014 (Third Gen) |
| Fiat | Ducato | 2015 - 2018 (Fourth Gen) |
| Ford | Fiesta | 2009 - 2016 (Ws-Wt-Wz) |
| Ford | Focus (Incl Xr5) | 2012 - 2015 (Lw) |
| Ford | Focus (Incl Xr5) | 2016 - 2019 (Lw) |
| Ford | Kuga | 2013 - 2015 (2Nd Gen) |
| Ford | Mondeo | 2007 - 2014 (Mb - Mc) |
| Ford | Mondeo | 2015 - 2019 (Md) |
| Ford | Ranger | 2011 - 2015 (Px) |
| Ford | Ranger | 2015 - 2019 (Px2-Px3) |
| Ford | Transit | 2007 - 2014 (Vm) |
| Ford | Transit | 2015 - 2017 (Vo) |
| Ford | Transit Custom | 2013 - 2016 (Vn-Euro 5) |
| Ford | Transit Custom | 2016 - 2017 (Vn-Euro 6) |
| Ford | Transit Custom | 2018 - 2019 (Vn) |
| Holden | Astra Coupe | 2015 - 2018 (Bk) |
| Holden | Astra Sedan | 2017 - 2018 (Bl) |
| Holden | Astra Wagon | 2016 - 2018 (Bk) |
| Holden | Barina | 2000 - 2005 (Xc) |
| Holden | Barina | 2006 - 2011 (Tk) |
| Holden | Barina | 2012 - 2016 (Tm) |
| Holden | Barina | 2017 - 2018 (Tm) |
| Holden | Captiva 5 (Incl Maxx) | 2006 - 2015 (Cg) |
| Holden | Vectra | 2003 - 2011 (Zc) |
| Honda | Crv | 2012 - 2015 (Rm) |
| Honda | Crv | 2015 - 2016 (Rm) |
| Honda | Crv | 2017 - 2018 (Rw) |
| Hyundai | I30 | 2012 - 2016 (Gd-Gd2) |
| Hyundai | I30 | 2017 - 2021 (Pd) |
| Hyundai | Kona | 2017 - 2018 (Os - Os2) |
| Jeep | Grand Cherokee | 2012 - 2013 (Wk2) |
| Jeep | Grand Cherokee | 2014 - 2020 (Wk2) |
| Land Rover | Discovery Iv | 2010 - 2016 (L319) |
| Land Rover | Evoque | 2011 - 2013 (L538) |
| Land Rover | Freelander Ii | 2012 - 2014 (L359) |
| Land Rover | Range Rover Sport | 2013 - 2015 (L494) |
| Mazda | 3 | 2013 - 2016 (Bm) - With Monochrome Display |
| Mazda | 3 | 2016 - 2018 (Bn) |
| Mercedes | A Class | 2005 - 2007 (W169) |
| Mercedes | A Class | 2007 - 2011 (W169) |
| Mercedes | A Class | 2013 - 2016 (W176) |
| Mercedes | B Class | 2005 - 2007 (W245) |
| Mercedes | B Class | 2007 - 2011 (W245) |
| Mercedes | C Class | 2008 - 2011 (W204) |
| Mercedes | C Class | 2011 - 2014 (W204) |
| Mercedes | C Class | 2014 - 2019 (W205) |
| Mercedes | G Class | 2006 - 2012 (W463) |
| Mercedes | M Class | 2005 - 2011 (W164) |
| Mercedes | Sprinter | 2007 - 2018 (W906) |
| Mercedes | Vito (Inc Viano Or Valente) | 2007 - 2015 (W639) |
| Mercedes | Vito (Inc Viano Or Valente) | 2015 - 2019 (W447) |
| Mitsubishi | Asx | 2010 - 2013 (Xa) |
| Mitsubishi | Asx | 2013 - 2019 (Xb - Xc) |
| Mitsubishi | Lancer (Inc Evolution) | 2007 - 2013 (Cj) |
| Mitsubishi | Lancer (Inc Evolution) | 2014 - 2018 (Cf) |
| Mitsubishi | Outlander | 2007 - 2012 (Zg-Zh) |
| Mitsubishi | Outlander | 2013 - 2018 (Zj-Zk) |
| Mitsubishi | Pajero | 2006 - 2015 (Ns-Nt-Nw) |
| Mitsubishi | Pajero | 2015 - 2021 (Nt-Nx) |
| Nissan | Cube | 1998 - 2016 (Z11 - Z12) |
| Nissan | Micra | 2003 - 2009 (K12) |
| Nissan | Micra | 2010 - 2014 (K13) |
| Nissan | Micra | 2015 - 2016 (K13) |
| Nissan | Pulsar | 2013 - 2016 (C12) |
| Nissan | Xtrail | 2014 - 2017 (T32) |
| Nissan | Xtrail | 2014 - 2017 (T32) With 360 Degree Camera System |
| Nissan | Xtrail | 2018 - 2019 (T32) |
| Nissan | Xtrail | 2018 - 2019 (T32) With 360 Degree Camera System |
| Peugeot | 207 | 2006 - 2011 (A7) |
| Peugeot | 208 | 2012 - 2014 (A99) |
| Peugeot | 3008 | 2009 - 2015 (T8) |
| Peugeot | 308 | 2007 - 2014 (T7) |
| Peugeot | 308 | 2015 - 2016 (T9) |
| Peugeot | 4007 | 2009 - 2011 (No Chassis Code) |
| Peugeot | 4008 | 2010 - 2014 (No Chassis Code) |
| Peugeot | 508 | 2011 - 2014 (No Chassis Code) |
| Peugeot | Rcz | 2010 - 2015 (No Chassis Code) |
| Renault | Clio | 2006 - 2011 (X85) |
| Renault | Clio | 2012 - 2014 (X85) |
| Renault | Laguna | 2007 - 2011 (Iii (B91)) |
| Renault | Megane | 2002 - 2006 (Ii (X64)) |
| Renault | Megane | 2007 - 2009 (Ii (B84)) |
| Renault | Megane | 2010 - 2011 (Iii (B95 - B35)) |
| Renault | Megane | 2012 - 2013 (Iii (B95 - B35)) |
| Renault | Scenic | 2005 - 2011 (Ii (J84 Phase 1 - 2)) |
| Renault | Trafic | 2015 - 2018 (X82) |
| Skoda | Octavia | 2013 - 2019 (Ne - 5E) |
| Subaru | Forester | 2013 - 2014 (Sj) |
| Subaru | Forester | 2015 - 2018 (Sj) |
| Subaru | Impreza (Inc Wrx) | 2012 - 2014 (Gp-Gj) |
| Subaru | Impreza (Inc Wrx) | 2015 - 2016 (Gp-Gj) |
| Subaru | Xv | 2012 - 2014 (Gp) |
| Subaru | Xv | 2015 - 2016 (Gp Facelift) |
| Subaru | Xv | 2017 - 2021 (Gt) |
| Suzuki | Swift | 2011 - 2016 (Fz) |
| Suzuki | Swift | 2017 - 2020 (Az) |
| SKU | C8NECTTURNSIG |
| Barcode # | 9342270005486 |
| Brand | AUSTRALIAN CAR AUDIO |
